Five sintering Carpet

Gaozheng products:

Summary

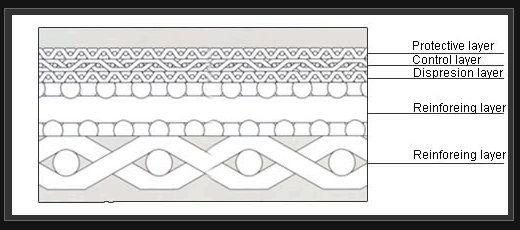

It is one standard combination 5-layer sintered wire mesh for the widest application. 5-layer different useless wire mesh made from stainless steel are brought together as per the different combination. They are sintered together through vacuum sinter、compression and rolling and made into a kind of porous material.
Characterictics:
·Large areas , From 1micron to 100micron it all has the well filtration performance .
·Steady filter rating, As to the two protective layers and sinter arts, the mesh of the filter layer is not easy to change.
·High mechanical strength. Excellent resistance to pressure ang high mechanical strength due to the fourth and fifth layers reinforced.
·Washability.Easy to wash, especially back washing owing to the surface.
·Heat resistance. Heat resistant up to 480℃.
·Corrosion resistance. Corrosion resistance as to a result of adopting SUS316L.
·Tractability.Suit to cut、punching、warp、tension and jointing.

Material: Standard material is SUS316L (AISI316L).

Size: Standard size are 500×1000mm、600×1200mm, other sizes in the above-mentioned range are also available according to customer's needs.

Norminal Filter rating (micron)	Protective Layer	Control Layer	Dispersion Layer	Reinforcing Layer	Reinforcing Layer	Thickness mm	A.P. at 1000Pa (L/min/c㎡)	Mean B.P.P (mmH2O)	Weight Kg/㎡	Porosity (%)
1	200	400×3000	200	12×64	64×12	1.7	1.81	360～600	Five-layer Sintered wire mesh (8.4) Six-layer Sintered wire mesh (14.4)	About 40%
2	100	325×2300	100	12×64	64×12	1.7	2.35	300～590
5	100	200×1400	100	12×64	64×12	1.7	2.42	260～550
10	100	165×1400	100	12×64	64×12	1.7	3.00	220～500
15	100	165×1200	100	12×64	64×12	1.7	3.41	200～480
20	100	165×800	100	12×64	64×12	1.7	4.50	170～450
25	100	165×600	100	12×64	64×12	1.7	6.12	150～410
30	100	400	100	12×64	64×12	1.7	6.86	120～390
40	100	325	100	12×64	64×12	1.7	7.10	100～350
50	100	250	100	12×64	64×12	1.7	8.41	90～300
75	100	200	100	12×64	64×12	1.7	8.70	80～250
100	100	150	100	12×64	64×12	1.7	9.10	70～190
150	50+100+50+30+30+100+50					2.0	25.00	50～150
200	40+80+40+20+40+80+40					2.0	26.00	50～150
